Atwood / HydroFlame Furnace Model 7912-II Tune-Up Kit
$0.00
*NEITHER OF THESE KITS ARE APPLICABLE TO A 7912, ONLY TO A 7912-II*
Please Note: As electrode 31380 is becoming no longer available, both kits are being obsoleted. Individual part links in blue.
Tune-Up Kit #1: No Longer Available This kit will only work if using one of the new single sense ignition boards 31501, 31501MC or new Dinosaur Electronics ignition board FAN50PLUS
- Burner Assembly 30268
- Single Sense Electrode 37517 (Replaced By P# 31380, one wire goes to electrode)
- Single Sense Electrode Gasket 37100 (New P# 37100MC)
- Limit Switch, 170° 37021
- Sail Switch 36680 (New P# 31377)
Tune-Up Kit #2 Contents: No Longer Available
- Burner Assembly 30268
- Dual Sense Electrode 36998 NLA (Two Wires Go To Electrode) Note: Kit #1 can be substituted but only if your ignition board is one of the new single sense versions, see note above.
- Dual Sense Electrode Gasket 32172 (New P# 32172MC)
- Limit Switch, 170° 37021
- Sail Switch 36680 (New P# 31377)

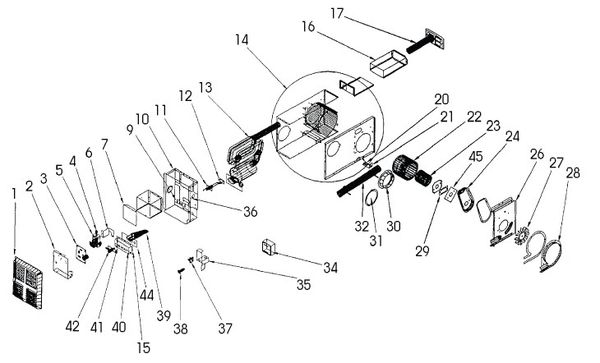

ATWOOD FURNACE 7912-II EXPLODED PARTS VIEW LINK
Item# 1 Circuit Breaker 30320 (Replaces P# 34007)
Item# 2 Burner Air Tube 35892
Item# 6 Door Latch 37912
Item# 2 Burner Air Tube 35892
Item# 6 Door Latch 37912
Click The Down Arrow To View Complete Exploded Parts View List
Item# 7 Duct Cover, 4 Inch 31361
Item# 8 Duct Adapter, 4 Inch 31474
Item# 9 Duct Adapter, 2 Inch 36688
Item# 20 Burner Plate Gasket 35890
Item# 24 Motor Mount Assembly 35879 NLA
Item# 27 OEM Ignition Module 31501
Item# 7 Duct Cover, 4 Inch 31361
Item# 8 Duct Adapter, 4 Inch 31474
Item# 9 Duct Adapter, 2 Inch 36688
Item# 20 Burner Plate Gasket 35890
Item# 24 Motor Mount Assembly 35879 NLA
Item# 27 OEM Ignition Module 31501
Item# 27 After-Market Ignition Module 31501MC
*Not Shown* Wiring Harness Kit 30230
Item# 28 Ignition Module Mounting Bracket 37951
Item# 29 Manifold 37391
Item# 30 OEM Blower Motor 31036 (New P# 31384)
*Not Shown* Wiring Harness Kit 30230
Item# 28 Ignition Module Mounting Bracket 37951
Item# 29 Manifold 37391
Item# 30 OEM Blower Motor 31036 (New P# 31384)
Item# 30 After-Market Blower Motor 31036MC (New P# 31384MC)
Item# 31 Orifice 36218 Before S/N 0651156 NLA
Item# 31 Orifice 36218 Before S/N 0651156 NLA
Item# 31 Orifice 37389 After S/N 0651155 NLA
Item# 41 Thermostat, Heat Only, Black 32300
Item# 41 Thermostat, Heat Only, Brown 38452 NLA
Item# 41 Thermostat, Heat Only, White 38453
Item# 42 Gas Valve 31150 (Replaces P# 38604)
Item# 45 Vent Kit, 4 Inch 35955
Item# 45 Vent Kit, 8 Inch 35956
Item# 45 Vent Kit, 12 Inch 35957 NLA
Item# 47 Combustion Wheel Kit 33124
Item# 41 Thermostat, Heat Only, Brown 38452 NLA
Item# 41 Thermostat, Heat Only, White 38453
Item# 42 Gas Valve 31150 (Replaces P# 38604)
Item# 45 Vent Kit, 4 Inch 35955
Item# 45 Vent Kit, 8 Inch 35956
Item# 45 Vent Kit, 12 Inch 35957 NLA
Item# 47 Combustion Wheel Kit 33124
Item# 48 Blower Wheel & Clamp Kit 33286
Item# 51 Coil 31000 (Replacement for Item# 42 Gas Valve) NLA
*Not Shown* 2 Inch Heater Duct Hose
Item# 51 Coil 31000 (Replacement for Item# 42 Gas Valve) NLA
*Not Shown* 2 Inch Heater Duct Hose
