Atwood / HydroFlame Furnace Model 8516-IV Blower Motor And Wheel Kit
Atwood / HydroFlame Furnace Model 8516-IV Blower Motor / Combustion Wheel / Blower Wheel
Note: Not applicable to the 8516-I or the 8516-II
Kit #1 Contents (links in blue):
Item#26 After-Market Motor Kit (link): 37359MC
Item#9 OEM Combustion Wheel (link): 33128
Item#1 OEM Blower Wheel (link): 33126
IN-STOCK
Kit #2 Contents (links in blue):
Item#26 OEM Motor Kit (link): 37359
Item#9 OEM Combustion Wheel (link): 33128
Item#1 OEM Blower Wheel (link): 33126
IN-STOCK
__________________________________

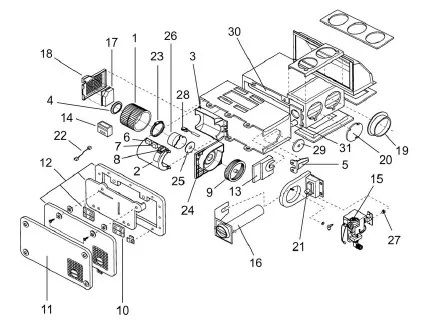

Atwood Furnace 8516-IV Exploded Parts View Links
Item#1 Blower Wheel (link): 33126
Item#2 Blower Housing Cover (link): 37605 NLA
Click The Down Arrow To View The Complete Parts List
Item#3 Blower Front Housing Cover (link): 37606 NLA
Item#5 Burner Assembly (link): 30268 (Replaced P# 36043)
Item#5 Burner Assembly (link): 30268-OS (Replaced P# 36043-OS)
Item#6 Circuit Breaker (with door) (link): 33780
Item#6 Circuit Breaker (with out door) (link): 30322
Item#7 On/Off Switch (link): 31092 (Replaces P# 36121)
Item#8 Klixon Time Delay Relay (link): 48000 (Replaces P# 31017)
Item#9 Combustion Air Wheel (link): 33128
Item#13 Slide Plate (link): 37411
Item#14 Analog Black Thermostat (link): 32300
Item#14 Analog Brown Thermostat (link): 38452 NLA
Item#14 Analog White Thermostat (link): 38453
Item#15 Gas Valve (link): 31150 (Replaces P# 38604)
*Not Shown* Replacement Valve Coil (link): 31000 NLA
Item#16 Draft Cap 37620 NLA (Before S/N 1260456)
Item#16 Draft Cap (link): 38139 NLA (After S/N 1260455)
Item#17 OEM Ignition Board (link): 31501 (33488)
Item#17 After-Market Ignition Board (link): 35-535811-113
Item#17 After-Market Ignition Module (link): 31501MC (33488)
Item#17 Dinosaur Ignition Board (link): FAN50PP
Item#18 Module Board Bracket (link): 34541
Item#19 Duct Adapter, 4 Inch (link): 31474
*Not Shown* 4 Inch Flexible Heater Duct Hose (link): E4-25
*Not Shown* Duct Adapter, 2 Inch (link): 36688
*Not Shown* 2 Inch Flexible Heater Duct Hose (link): E2-25
Item#20 Duct Cover, 4 Inch (link): 31361
Item#21 Electrode w/ Ignition Lead (link): 34570
*Not Shown* Electrode Gasket 37100 NLA (New P# Link: 37100MC)
Item#22 Cover Plate (link): 37419
Item#24 Motor Wall (link): 37801 NLA (Replaced P# 37601)
Item#25 Motor Gasket (link): 37600 NLA
Item#26 OEM Blower Motor Only (link): 37696 NLA
Item#26 OEM Kit Motor Kit (link): 37359
Item#26 After-Market Blower Motor Only (link): 37696MC
Item#26 After-Market Blower Motor Kit (link): 37359MC
Item#27 Burner Orifice #56 (link): 31083 (Replaced P# 31257)
Item#28 Sail Switch (link): 31377 (Replaced P# Link: 36680)
Item#29 Gas Inlet (link): 37410 NLA
Item#31 OEM Exhaust Wall Gasket (link): 37956 NLA
Item#31 After-Market Exhaust Wall Gasket (link): 37956PDX
*Not Shown* Wiring Harness (link): 30229
*Not Shown* Field Wiring Plug (link): 36290
*Not Shown* 1/4" Spade Connector Limit Switch 190° (link): 37022-OS-.250
*Not Shown* 3/16" Spade Connector Limit Switch, 190° (link): 37022-OS-.187
*Not Shown* 1/4" Spade Connector Limit Switch, 190° (link): 37022
*Not Shown* 3/16" Spade Connector Limit Switch, 190° (link): 37022MC
