Atwood / HydroFlame Furnace Model 8520-II Tune-Up Kit
Atwood / Hydro Flame Furnace Model 8520-II Tune-Up Kit
*Please Note: Burner assembly 33842 is no longer available and has been removed from this kit. The parts still available are in blue.
Item#24 Electrode (link): 36999MC (Replaces P# Link: 36999)
Item#32 Limit Switch (link): 35132
Item#41 Sail Switch (link): 31377 (Replaced P# Link: 36680)
IN-STOCK
___________________________________________

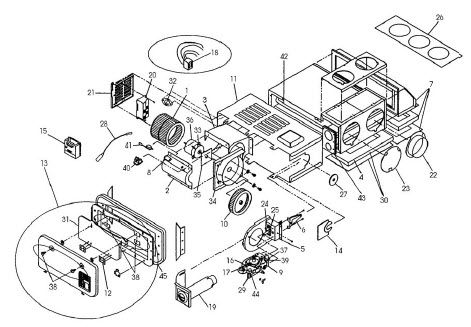

ATWOOD FURNACE 8520-II AVAILABLE PARTS LINKS
Item#1 Air Blower Wheel 33619 NLA
Item#2 Blower Housing Cover 33580 NLA
Item#3 Blower Housing Assembly 33639 NLA
Item#6 Burner Assembly 33842 NLA
Item#8 Circuit Breaker (link): 33780 (Replaces P# 31028)
Item#9 Valve Coil (link): 31000 NLA
Click The Down Arrow To View The Complete Parts List
Item#10 Combustion Air Wheel (link): 33128
Item#15 Analog Black Thermostat (link): 32300
Item#15 Analog Brown Thermostat (link): 38452 NLA
Item#15 Analog White Thermostat (link): 38453
Item#15 Digital White Thermostat (link): 38555 NLA
Item#17 Gas Valve (link): 31155 NLA (Replaces P# 38607)
Item#18 Field Wiring Plug (link): 36290
Item#19 Draft Cap Assembly (link): 38141 NLA
Item#20 OEM Ignition Board (link): 31501 (33488)
Item#20 After-Market Ignition Module (link): 35-535811-113
Item#20 After-Market Ignition Module (link): 31501MC (33488)
Item#20 Dinosaur Electronics Ignition Module (link): FAN50PP
Item#21 DSI Module Board Mounting Bracket (link): 34541
Item#22 Duct Adapter, 4 Inch (link): 31474
*Not Shown* 4 Inch Flexible Heater Duct Hose (link): E4-25
*Not Shown* Duct Adapter, 2 Inch (link): 36688
*Not Shown* 2 Inch Flexible Heater Duct Hose (link): E2-25
Item#23 Duct Cover, 4 Inch (link): 31361
Item#24 Electrode Kit (link): 33625 NLA (Replaced P# Link: 36999 NLA)
Item#24 Electrode (link): 36999MC (Replaces P# Link: 36999)
Item#25 OEM Electrode Gasket (link): 32172 NLA
Item#25 After-Market Electrode Gasket (link): 32172-OS
Item#27 Gas Inlet Plug 33567 NLA
Item#28 Ignitor Lead (link): 34571 NLA
Item#32 Limit Switch (link): 35132
Item#33 OEM Motor Mounting Bracket (link): 37360
Item#33 After-Market Motor Mounting Bracket (link): 37360MC
Item#35 Motor Gasket (link): 37713 (Replaces P# 32841)
Item#36 OEM Motor (link): 30131 (Replaces P# Link: 33219)
Item#37 Burner Orifice (link): 30789 (Replaced P# Link: 31265)
Item#40 Klixon Time Delay Relay (link): 48000 (Replaces P# 31017)
Item#41 Sail Switch (link): 31377 (Replaced P# Link: 36680)
Item#42 Element Assembly Kit 37960 NLA
Item#43 OEM Exhaust Wall Gasket (link): 37956 NLA
Item#43 After-Market Exhaust Wall Gasket (link): 37956PDX
