Atwood / HydroFlame Furnace Model 8935-DC-I Tune-Up Kit

Atwood Furnace Model 8935-I-DC Tune-Up  / Repair Kit

Tune-Up Kit Includes (links in blue):
Item#52 Limit Switch (link): 35132
Item#51 Electrode (link): 36997
*Not Shown* Electrode Gasket (link): 32172-OS (Replaced P# Link: 32172)
Item#36 Sail Switch (link): 31377 (Replaced P# Link: 36680)
IN-STOCK

_____________________________________________

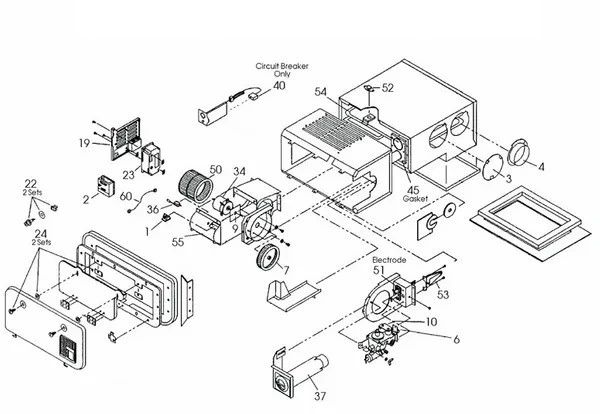

ATWOOD FURNACE 8935-DC-I EXPLODED PARTS LINKS

Item#1 12VDC Klixon Time Delay Relay (link): 48000 (Replaces P# 31017)

Item#2 Analog Black Thermostat (link): 32300

Item#2 Analog Brown Thermostat (link): 38452 NLA

Item#2 Analog White Thermostat (link): 38453

Item#3 Duct Cover Plate 31361

Item#4 Adapter Duct, 4 Inch 31474

*Not Shown* 4 Inch Flexible Heater Duct Hose (link): E4-25

*Not Shown* Duct Adapter, 2 Inch (link): 36688

Click The Down Arrow To View The Complete Parts List

*Not Shown* 2 Inch Flexible Heater Duct Hose (link): E2-25

Item#6 Orifice #51, LP Only, (link): 31080 (Replaced P# Link: 32285)

Item#7 Combustion Air Wheel (link): 33128

Item#9 Motor Gasket (link): 37713 (Replaces P# Link: 32841)

Item#10 Gas Valve, DC Voltage (link): 31155 NLA (Replaces P# 38607)

*Not Shown* Gas Valve Replacement Coil (link): 31000 NLA

Item#19 DSI Board Mount Bracket (link): 34541 NLA

Item#23 OEM Ignition Board (link): 31501 (33488)

Item#23 After-Market Ignition Module (link): 31501MC (33488)

Item#24 Screw-In Door Latch (link): 33847

Item#27 Inside Blower Housing 33984 NLA

Item#34 OEM DC Voltage Blower Motor Only (link): 37698 NLA

Item#34 OEM DC Voltage Blower Motor Kit (link): 37357

*Not Shown* OEM Motor Mount Bracket (link): 37360 NLA

Item#34 After-Market DC Voltage Blower Motor Only (link): 37698MC

Item#34 After-Market DC Voltage Blower Motor Kit (link): 37357MC

*Not Shown* After-Market Motor Mount Bracket (link): 37360MC

Item#36 Sail Switch (link): 31377 (Replaced P# Link: 36680)

Item#37 Draft Cap (link): 38141 NLA (Replaces P# 36894)

Item#40 Circuit Breaker, 15 Amp (link): 33782

Item#45 OEM Exhaust Wall Gasket (link): 37956 NLA

Item#45 After-Market Exhaust Wall Gasket (link): 37956PDX

Item#50 Blower Wheel (link): 34099

Item#51 Electrode (link): 36997

*Not Shown* Electrode Gasket (link): 32172-OS (Replaced P# Link: 32172)

Item#52 Limit Switch (link): 35132

Item#53 Burner Assembly (link): 30209 (Replaced P# Link: 35491)

Item#54 Heating Element 34976 NLA

Item#55 Blower Assembly (link): 34014 NLA

Item#60 Ignition Lead (link): 34571 NLA

______________________________________

Available Downloads:

Atwood 8935-DC-I Mobile Service Training Manual 2007
Atwood HydroFlame 8935-DC-I Service Manual 2004
Atwood HydroFlame 8935-DC-I Service Manual 2007
Atwood 8935-DC-I Time Delay, Sail Switch, And Limit Switch Important Info
