Dometic Furnace Model DFLD35111 Tune-Up Kit
Dometic Furnace Model DFLD35111 Tune-Up Kits
Kit #1 Only applicable to serial number 7299127 & Before
Tune-Up Kit #1 Includes (individual part links in blue):
Tune-Up Kit #2 Includes (individual part links in blue):

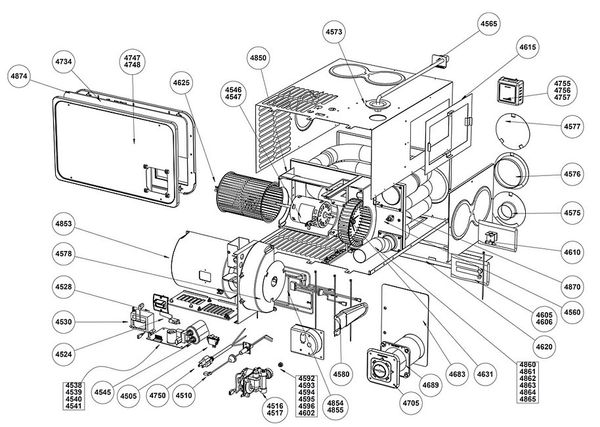

Dometic Furnace DFLD35111 Exploded Parts View Links
Click The Down Arrow To View The Complete Parts List
*Not Shown* Blower Motor And Wheel Kit (link): 30720/30619/33126
Item #4505 20 Amp Lit Circuit Breaker (link): 32345
Item #4505 20 Amp Non-Lit Circuit Breaker (link): 34015
Item
#4510 Electrode (link): 35100
Item #4510 Electrode (link): 35100-OS
Item #4510 Electrode (link): 35100MC
Item
#4516 Gas
Valve (link): 31098
Item
#4524 OEM Curved Sail Switch (link): 31094 NLA (Replaced By P# 31094-OS)(Serial # 7299127 & Below)
Item
#4524 Flat Blade Sail Switch Kit 33082 (New P# 36165)(Serial # After 7299127)
Item #4524 Flat Blade Sail Switch Kit 33082-OS (New P# 36165-OS)(Serial # After 7299127)
Item #4524 Flat Blade Sail Switch Only (link): 33063 (Serial # After 7299127)
Item
#4528 Sail
Switch Mount (link): 33053
Item
#4539 DSI Board Bracket 30627 (Non Stocked Item)
Item
#4541 OEM
Ignition Board (link): 31501
Item #4541 After-Market Ignition Module (link): 35-535811-113
Item
#4541 After-Market
Ignition Board (link): 31501MC
Item #4541 Dinosaur Electronics Ignition Module (link): FAN50PP
Item
#4547 OEM
Blower Motor (link): 30720
Item
#4547 After-Market Blower Motor (link): 30720-NBK 20897
Item
#4560 Limit
Switch (link): 31091
Item #4560 Limit Switch, 190° (link): 31091-OS
Item #4560 Limit Switch, 190° (link): 31091MC
Item
#4573 Gas
Line Grommet (link): 35706
Item
#4575 2
Inch Duct Adapter (link): 36688
*Not Shown* 2 Inch Flexible Heater Duct Hose (link): E2-25
Item #4576 4 Inch Duct Adapter (link): 31474
*Not Shown* 4 Inch Flexible Heater Duct Hose (link): E4-25
Item
#4577 4
Inch Duct Cover (link): 31361
Item
#4578 Air Restrictor 31089 (Non Stocked Item)
Item #4580 Burner Head (link): 30209
Item
#4595 Orifice
(Stamp #50 LP) (link): 31078
Item
#4610 Casing Leg 31244 (Non Stocked Item)
Item
#4615 Vertical Bottom Adapter Plate 30205 (Non Stocked Item)
Item
#4620 Horizontal Adapter Plate (link): 30261
Item
#4625 Blower
Wheel w/ Clamp (link): 33126
Item
#4631 Combustion
Air Wheel w/ Clamp (link): 30619
Item
#4705 Door Vent Assembly (link): 33050
Item
#4734 Door Bezel 32612 (Non Stocked Item)
Item
#4747 Black #44 Door 33058 (Non Stocked Item)
Item
#4748 White #34 Door 33059 (Non Stocked Item)
Item
#4755 Black
Thermostat (link): 32300
Item
#4756 Brown
Thermostat (link): 38452 NLA
Item
#4757 White
Thermostat (link): 38453
Item
#4850 Blower Housing (link): 30702
Item
#4853 Front Blower Housing 32448 (Non Stocked Item)
Item
#4855 Wiring Harness (link): 33060
Item
#4863 Exhaust Adapter 33171 (Non Stocked Item)
Item
#4870 Heat Exchanger 33302 (Non Stocked Item)
Item
#4874 Door Gasket 33322 (Non Stocked Item)
