Dometic Furnace Model DFLD40121 Tune-Up Kit
Dometic Furnace Model DFLD40121 Tune-Up And Repair Kits
Kit #1 Only applicable to serial number 7299127 & Before
Tune-Up Kit #1 Includes (individual part links in blue):
Tune-Up Kit #2 Includes (individual part links in blue):

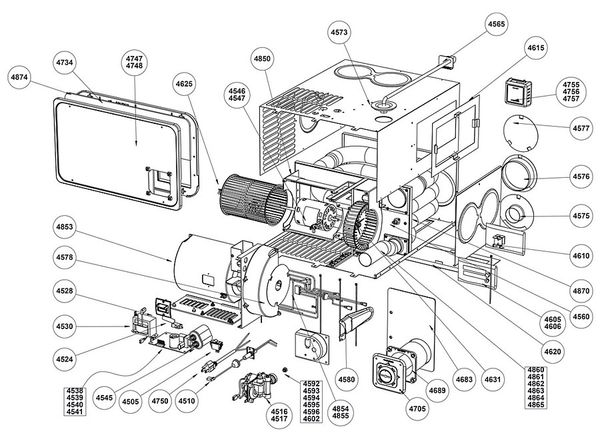

Dometic Furnace DFLD40121 Exploded Parts View Links
Click The Down Arrow To View The Complete Parts List
*Not Shown* Blower Motor And Wheel Kit (link): 30720/30619/33126
Item #4505 20 Amp Lit Circuit Breaker (link): 32345
Item #4505 20 Amp Non-Lit Circuit Breaker (link): 34015
Item #4510 Electrode (link): 35100
Item #4510 Electrode (link): 35100-OS
Item #4510 Electrode (link): 35100MC
Item #4516 Gas Valve (link): 31098
Item #4524 OEM Curved Sail Switch (link): 31094 NLA (Replaced By P# 31094-OS)(Serial # 7299127 & Below)
Item #4524 Flat Blade Sail Switch Kit 33082 (New P# 36165)(Serial # After 7299127)
Item #4524 Flat Blade Sail Switch Kit 33082-OS (New P# 36165-OS)(Serial # After 7299127)
Item #4524 Flat Blade Sail Switch Only (link): 33063 (Serial # After 7299127)
Item #4528 Sail Switch Mount (link): 33053
Item
#4539 DSI Board Bracket 30627 (Non Stocked Item)
Item #4541 OEM Ignition Board (link): 31501
Item #4541 After-Market Ignition Module (link): 35-535811-113
Item #4541 After-Market Ignition Board (link): 31501MC
Item #4541 Dinosaur Electronics Ignition Module (link): FAN50PP
Item #4547 OEM Blower Motor (link): 30720
Item #4547 After-Market Blower Motor (link): 30720-NBK 20897
Item #4560 Limit Switch (link): 31091
Item #4560 Limit Switch, 190° (link): 31091-OS
Item #4560 Limit Switch, 190° (link): 31091MC
Item #4565 Manifold Extension 35712 (Non Stocked Item)
Item #4573 Gas Line Grommet (link): 35706
Item #4575 2 Inch Duct Adapter (link): 36688
*Not Shown* 2 Inch Flexible Heater Duct Hose (link): E2-25
Item #4576 4 Inch Duct Adapter (link): 31474
*Not Shown* 4 Inch Flexible Heater Duct Hose (link): E4-25
Item #4577 4 Inch Duct Cover (link): 31361
Item
#4578 Air Restrictor 31089 (Non Stocked Item)
Item #4580 Burner Head (link): 30209
Item #4594 Orifice (#48 LP) (link): 30887
Item
#4610 Casing Leg 31244 (Non Stocked Item)
Item
#4615 Vertical Bottom Adapter Plate 30205 (Non Stocked Item)
Item #4620 Horizontal Adapter Plate (link): 30261
Item #4625 Blower Wheel w/ Clamp (link): 33126
Item #4631 Combustion Air Wheel w/ Clamp (link): 30619
Item
#4683 Vent Cover Panel 31368 (Non Stocked Item)
Item
#4689 Vent Panel Extension 33055 (Non Stocked Item)
Item #4705 Door Vent Assembly (link): 33050
Item #4755 Black Thermostat (link): 32300
Item #4756 Brown Thermostat (link): 38452 NLA
Item #4757 White Thermostat (link): 38453
Item #4850 Blower Housing (link): 30702
Item
#4853 Front Blower Housing 32448 (Non Stocked Item)
Item #4855 Wiring Harness (link): 33060
Item
#4865 Exhaust Adapter 33173 (Non Stocked Item)
Item
#4870 Heat Exchanger 33302 (Non Stocked Item)
