Dometic Furnace Model DFMD25141 Tune-Up Kit

$36.69 $28.97

Tune-Up Kit Sail Switch Options:

Tune-Up Kit / Burner Assembly Options:

Tune-Up Kit / Ignition Board Options:

Tune-Up Kit / Gas Valve Option:

QTY

Dometic Furnace Model DFMD25141 Tune-Up Kits

Kit #1 Is Only Applicable To Serial Numbers Before 72489156

Tune-Up Kit #1 Includes (individual part links in blue):

Item #4510 Electrode Assembly (link): 35100-OS

Item #4560 Limit Switch, 190 Degrees (link): 31091-OS

Item #4524 Sail Switch (link): 31094 NLA (Replaced By P# 31094-OS)(curved blade)

IN-STOCK

Kit #2 Is Only Applicable To Serial Numbers After 72489156

Tune-Up Kit #2 Includes (individual part links in blue):

Item #4510 Electrode Assembly (link): 35100-OS

Item #4560 Limit Switch, 190 Degrees (link): 31091-OS

Item #4524 Sail Switch (link): 33082-OS (New P# 36165-OS)(flat blade)

IN-STOCK

___________________________________

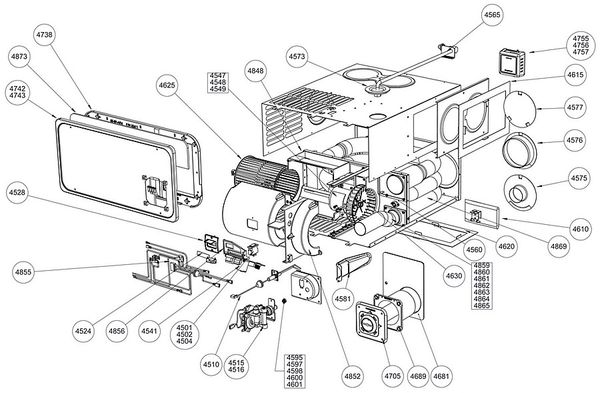

Dometic Furnace Model DFMD25141 Exploded Parts View Links

Click The Down Arrow To View The Complete Parts List

*Not Shown* Blower Motor / Combustion Wheel / Blower Wheel Kits (link): 30722/33128/33126

Item #4501 10 Amp Circuit Breaker (link): 30335

Item #4510 Electrode (link): 35100

Item #4510 Electrode (link): 35100-OS

Item #4510 Electrode (link): 35100MC

Item #4516 Gas Valve (link): 31098

Item #4524 OEM Curved Blade Sail Switch (link): 31094 NLA (SN 72489156 & Prior)(Replaced By P# Link: 31094-OS)

Item #4524 Curved Blade Sail Switch (link): 31094-OS (Serial Number 72489156 & Before)

Item #4524 Curved Blade Sail Switch (link): 31094MC (Serial Number 72489156 & Before)

Item #4524 OEM Flat Blade Sail Switch Kit (link): 33082 (After SN 72489156) (New P# 36165)

Item #4524 Flat Blade Sail Switch Kit (link): 33082-OS (After SN 72489156) (New P# 36165-OS)

Item #4524 Flat Blade Sail Switch Only (link): 33063

Item #4528 Sail Switch Mount (link): 33053

Item #4541 OEM Ignition Board (link): 31501

Item #4541 After-Market Ignition Module (link): 35-535811-113

Item #4541 After-Market Ignition Board (link): 31501MC

Item #4541 Dinosaur Electronics Ignition Module (link): FAN50PP

Item #4549 OEM Blower Motor (link): 30722

Item #4549 After-Market Blower Motor (link): 30722MC

Item #4560 Limit Switch (link): 31091

Item #4560 Limit Switch, 190° (link): 31091-OS

Item #4560 Limit Switch, 190° (link): 31091MC

Item#4573 Gas Line Grommet (link): 35706

Item #4575 2 Inch Duct Adapter (link): 36688

*Not Shown* 2 Inch Flexible Heater Duct Hose (link): E2-25

Item #4576 4 Inch Duct Adapter (link): 31474

*Not Shown* 4 Inch Flexible Heater Duct Hose (link): E4-25

Item# 4577 4 Inch Duct Cover Plate (link): 31361

Item #4581 Burner Assembly (link): 30268

Item #4581 Burner Assembly (link): 30268-OS

Item #4601 Orifice (Stamp # 1.45 MM) (link): 30845

Item #4610 Casing Leg 31244 (Non Stocked Item)

Item #4615 Vertical Adapter Plate 30205 (Non Stocked Item)

Item #4620 Horizontal Adapter Plate (link): 30261

Item #4625 Blower Wheel w/ Clamp (link): 33126

Item #4630 Combustion Wheel w/ Clamp (link): 33128

Item #4705 Door Vent Assembly (link): 33050

Item #4738 Door Bezel (link): 32611

Item #4742 Black #44 Door 33056 (Non Stocked Item)

Item #4743 White #34 Door 33057 (Non Stocked Item)

Item #4755 Black Thermostat (link): 32300

Item #4756 Brown Thermostat (link): 38452 NLA

Item #4757 White Thermostat (link): 38453

Item #4848 Blower Housing 30751 (Non Stocked Item)

Item #4852 Blower Housing Cover (link): 32444

Item #4855 Wiring Harness (link): 33060

Item #4856 Board & Breaker Bracket 33052 (Non Stocked Item)

Item #4863 Exhaust Adapter 33171 (Non Stocked Item)

Item #4869 Heat Exchanger 33301 (Non Stocked Item)

Item #4873 Door Gasket 33321 (Non Stocked Item)
