Dometic Refrigerator Control Board Kit, 2 Way, 3308741.002

$0.00

Dometic Refrigerator Control Board Kit 3308741.002 No Longer Available

Applicable to 2 Way Models (see below)

Note #1: the after-market version for this board is Dinosaur Electronics part number (link ): P-711

Note #2: To order the Dinosaur Electronics version that replaces board 3850415013 in fixed temperature refrigerators only, please click onto this link: 3850415.013

3308741.002 Kit Included:

Power Module Assembly 3850415013 (see notes above)

Wiring Diagram (link): 3308727.001

Wires / Wiring Harness 3308770.001 / 3308772.007

Self-Tapping Hardware (1) 3308774.003

Cover

Installation Instructions 3308740.004

Also known under part number: 3308741002

Replaces Dometic Control Boards:

2931842039 (2931842.039)

29322881010 (2932881.010)

2932694017 (2932694.017)

2932695014 (2932695.014)

2932770015 (2932770.015)

3850415013 (3850415.013)

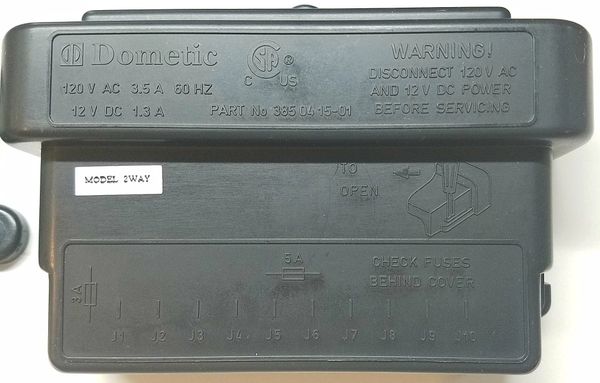

Note: If your existing board doesn't look like the picture above your refrigerator may have been upgraded with the newer version of the upper control board as well as your lower board. If this is the case then lower board 3308741.002 will not be applicable any longer. Please email us a picture of you lower control board as well as the model and product number of your refrigerator and we will advise you further.

Click The Down Arrow To View Complete Model List

Applicable To Models With Product Numbers:

List Under Development

NDR1272 With Product Number 921148080 (replaces p# 2932881010)

NDR1402 With Product Number 921148203 (replaces p# 2932695014)
NDR1402 With Product Number 921148204 (replaces p# 2932695014)
NDR1402 With Product Number 921148207 (replaces p# 2932695014)

RM2351 With Product Number 921145024 (replaces p# 3850415013)
RM2351 With Product Number 921145026 (replaces p# 3850415013)
RM2351 With Product Number 921145028 (replaces p# 3850415013)
RM2351 With Product Number 921145029 (replaces p# 3850415013)

RM2451 With Product Number 921140112 (replaces p# 3850415013)
RM2451 With Product Number 921140113 (replaces p# 3850415013)
RM2451 With Product Number 921140116 (replaces p# 3850415013)
RM2451 With Product Number 921140117 (replaces P# 3850415013)

RM2551 With Product Number 921142015
RM2551 With Product Number 921142016
RM2551 With Product Number 921142019
RM2551 With Product Number 921142020
RM2551 With Product Number 921142101
RM2551 With Product Number 921142102
RM2551 With Product Number 921142105
RM2551 With Product Number 921142106
RM2551 With Product Number 921142109
RM2551 With Product Number 921142110

RM2607 With Product Number 921573001
RM2607 With Product Number 921573101

RM2611 With Product Number 921571201
RM2611 With Product Number 921572001
RM2611 With Product Number 921572401
RM2611 With Product Number 921572501
RM2611 With Product Number 921573401
RM2611 With Product Number 921573501

RM2612 With Product Number 921573801 (Only works with eyebrow upper control board (link): 2932771013, so you must upgrade to this board if you haven't already)
RM2612 With Product Number 921573901 (Only works with eyebrow upper control board (link): 2932771013, so you must upgrade to this board if you haven't already)
RM2612 With Product Number 921574401 (Only works with eyebrow upper control board (link): 2932771013, so you must upgrade to this board if you haven't already)
RM2612 With Product Number 921574501 (Only works with eyebrow upper control board (link): 2932771013, so you must upgrade to this board if you haven't already)
RM2612 With Product Number 921575003 (Only works with eyebrow upper control board (link): 2932771013, so you must upgrade to this board if you haven't already)
RM2612 With Product Number 921575004 (Only works with eyebrow upper control board (link): 2932771013, so you must upgrade to this board if you haven't already)
