• Suburban Furnace Model SF-35 Blower Motor / Blower Wheel / Combustion Wheel Kits

    $189.64 $147.81

    Please Note:

    All Suburban Serial Numbers manufactured after January 1990, will be nine digits. The first two (2) digits signify the year of manufacture. The next set of digits, indicate the week of the year and the remaining digits are serial numbers.
    For Example: Even though numerically higher, 912000060 is lower than serial number 014103973 due to the year of manufacture.

    Kit #1 (Below Serial Number 012003642)

    After-Market Blower Motor (link): 233102-NBK 20512 (OEM Version NLA)

    OEM Blower Air Wheel (link): 350129

    OEM Combustion Wheel (link): 350184 (New P# 521235)

    IN-STOCK

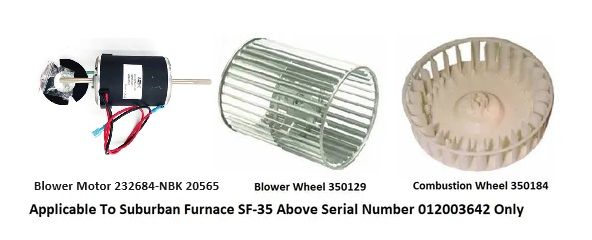

    Kit #2 (Above Serial Number 012003642)

    After-Market Blower Motor (link): 232684-NBK 20565 (OEM Version NLA)

    OEM Blower Air Wheel (link): 350129

    OEM Combustion Wheel (link): 350184 (New P# 521235)

    IN-STOCK

    _____________________________

    SUBURBAN FURNACE SF-35 EXPLODED PARTS VIEW LINKS

    *Not Shown* Blower Motor And Wheel Kits (link): 233102 or 232684 / 350129 / 521235

    Item#2 Thermostat, White (link): 161154

    Item#2 Thermostat, Black (link): 161210

    Item#6 Duct Cover (link): 050733

    Item#7 Duct Collar (link): 050715

    Item#9 Manifold Assembly (link): 171596
    Item#11 Orifice (link): 180222 Below S/N 021206467 (NPT Threads)
    Item#11 Orifice (link): 180308 Above S/N 021206467 (Metric Threads)
    Item#12 Burner Access Door Gasket (link): 070811 Below S/N 094101431 (New P# 525010)

    Item#12 Burner Access Door Gasket (link): 071263 Above S/N 094101431 (New P# 525031)

    Item#22 Electrode (link): 231898 Below S/N 921403895

    Item#22 Electrode (link): 232166 Between S/N's 921403895 and 934701426

    Item#22 Electrode (link): 232286 Above S/N 934701426 (New P# 525009)

    Item#22 Electrode (link): 232286-OS Above S/N 934701426 (New P# 525009-OS)

    Item#23 Burner Assembly (link): 010865

    Item#23 Burner Assembly (link): 010865-OS

    Item#26 Gas Valve (link): 161133 Below S/N 921403846

    Item#26 Gas Valve (link): 161070 Between S/N's 921403846 and 971303163

    Item#26 Gas Valve (link): 161122 Above S/N 971303163 (New P# 525044)
    Item#31 Vent Cap & Exhaust Tube Assembly (link): 260553

    Item#32 Intake Tube Assembly (link): 051248

    Item#34 Front Half Combustion Air Housing Assembly (link): 390852

    Item#37 Rear Half Combustion Air Housing Assembly (link): 390848

    Item#38 Combustion Air Wheel (link): 350184 (New P# 521235)

    Item#39 Firewall Gasket (link): 071084

    Item#40 OEM Motor Assembly (link): 233102 NLA Below S/N 012003642

    Item#40 After-Market Motor Assembly (link): 233102-NBK 20512 Below S/N 012003642

    Item#40 Motor Assembly (link): 233102MC Below S/N 012003642

    Item#40 OEM Motor Assembly (link): 232684 Above S/N 012003642

    Item#40 After-Market Motor Assembly (link): 232684-NBK 20565 Above S/N 012003642

    Item#42 Front Half Room Air Blower Housing Assembly (link): 390872

    Item#44 Rear Half Room Air Blower Housing Assembly (link): 390851
    Item#45 Sail Switch (link): 230509 Below S/N 924201894 (New P# 525024)

    Item#45 Sail Switch (link): 232261 Above S/N 924201894 (New P# 525003)

    Item#48 On / Off Switch (link): 232351

    Item#50 OEM Ignition Module Board (link): 521099

    Item#50 After-Market Ignition Module Board (link): 521099MC

    Item#50 Dinosaur Electronics Ignition Module Board (link): FAN50PP

    *Not Shown* Wiring Kit (link): 520832 (to convert to new 3 try ignition board)
    Item#52 Room Air Blower Wheel (link): 350129

    Item#57 Firewall Gasket (link): 070808

    Item#59 Limit Switch (link): 231630 Below S/N 921403896

    Item#59 Limit Switch (link): 232504 Above S/N 921403895 (New P# 525006)

    *Not Shown* Gasket Kit, Complete (link): 520799 NLA

    _________________________________

    *Please Note* All Suburban Serial Numbers manufactured after January 1990, will be nine digits. The first two (2) digits signify the year of manufacture. The next set of digits, indicate the week of the year and the remaining digits are serial numbers.
    For Example: Even though numerically higher, 912000060 is lower than serial number 014103973 due to the year of manufacture.
